1.5HP Electric Motor 3450 RPM AC 115V/230V

$21295 $25795
.
Delivery & Shipping
Get it by Oct 22–Oct 24
Ships next business day
Free 30-day returns
SKU: T3342P485070

Refund Policy

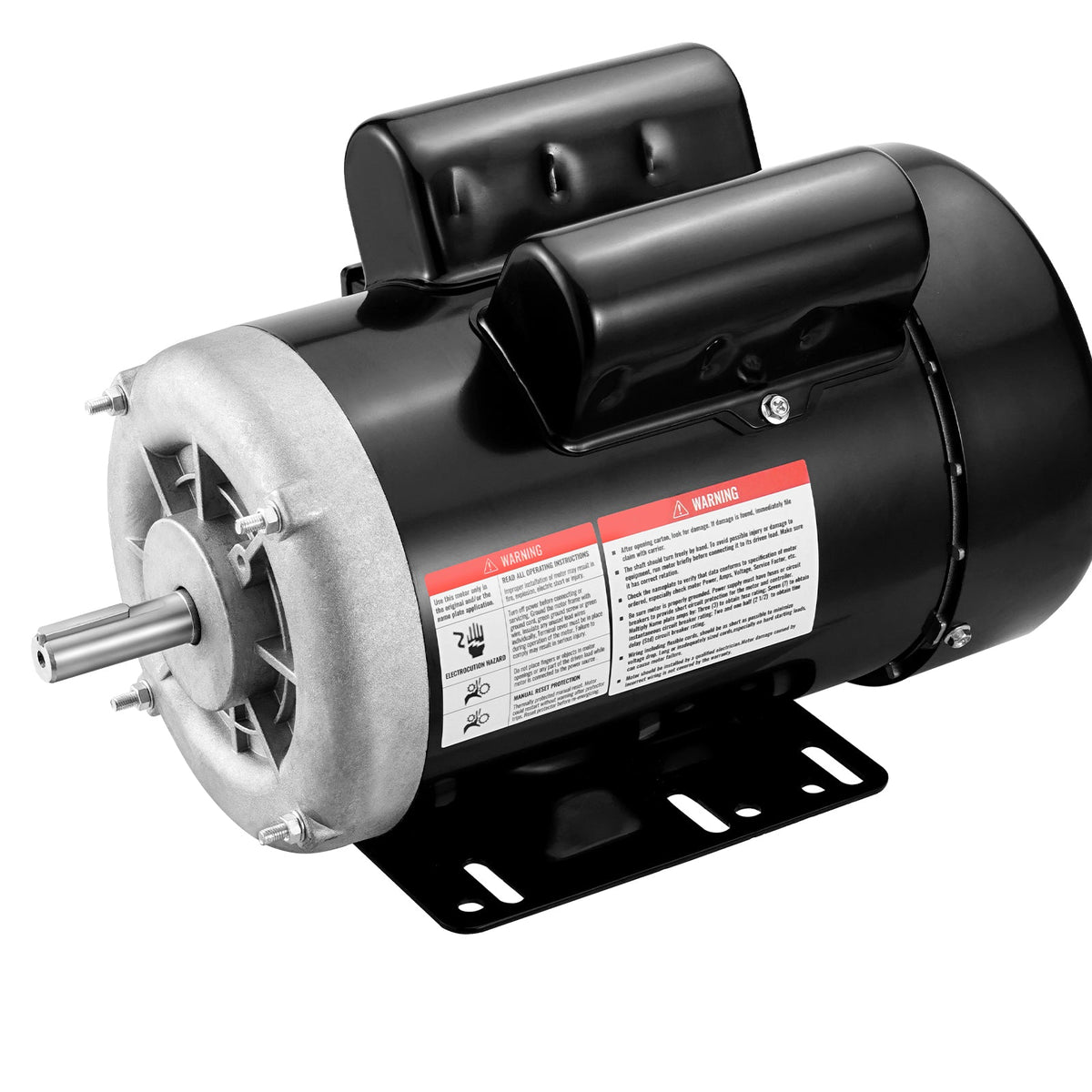

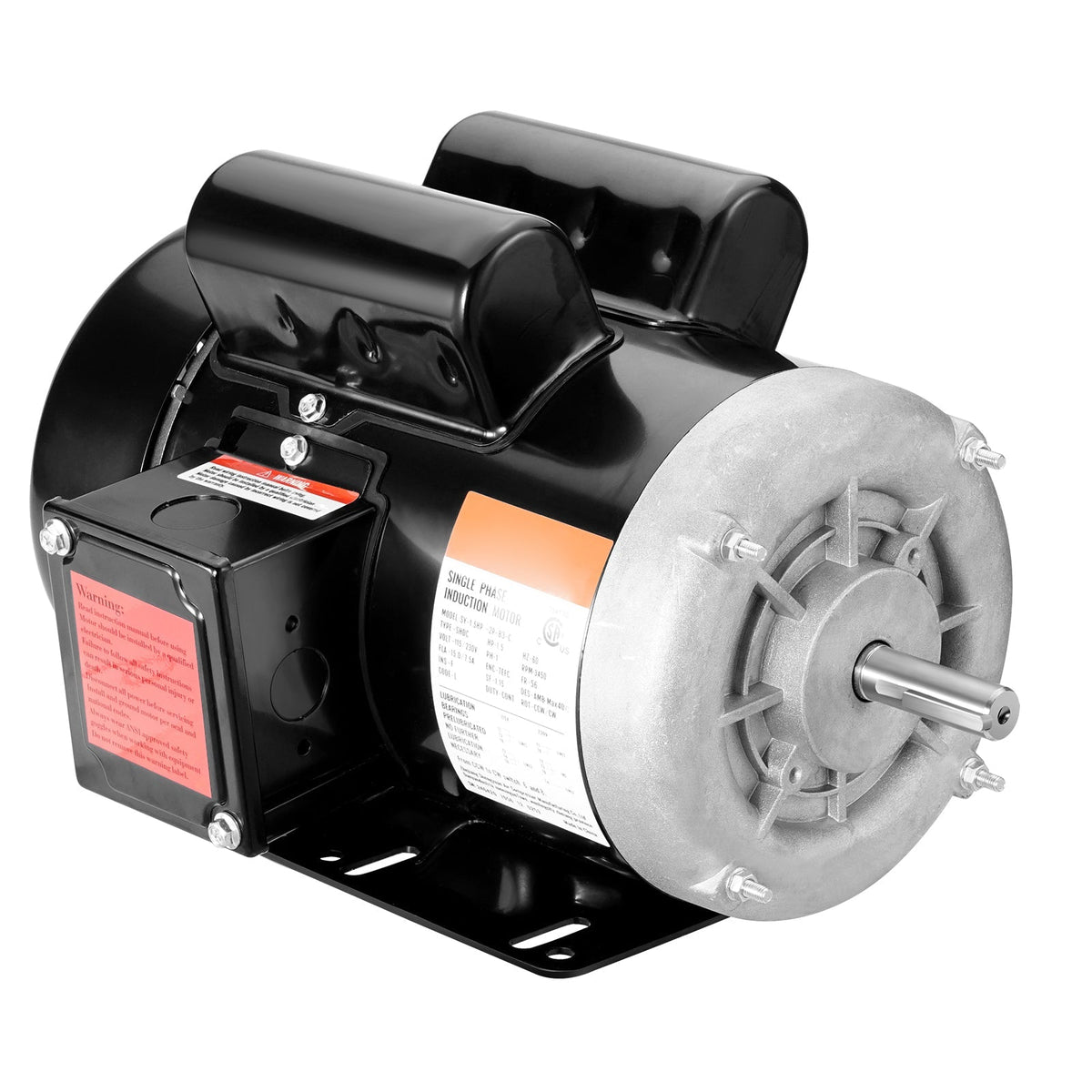

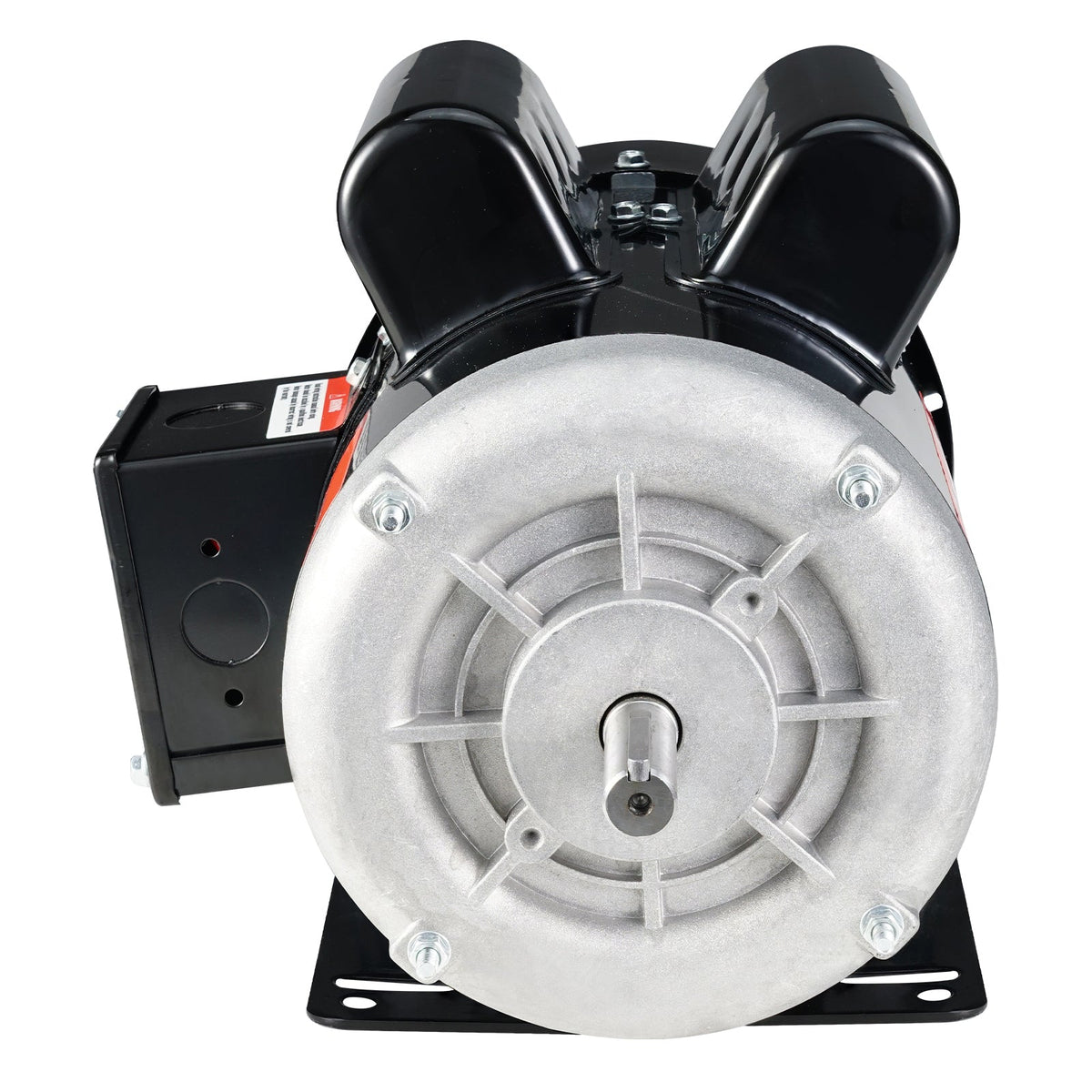

The 1.5HP Electric Motor 3450 RPM AC 115V/230V offers sturdy, reliable power for agricultural or general machinery. Featuring a durable black finish and heavy-duty steel construction, this electric motor is built for frequent use in demanding environments. Its versatile installation and reversible rotation make it an essential replacement or upgrade for various applications where dependable performance is required.

Key Features

  • 1.5HP High-Speed Power: Single-phase, 3450 RPM output delivers efficient and consistent energy for machinery.

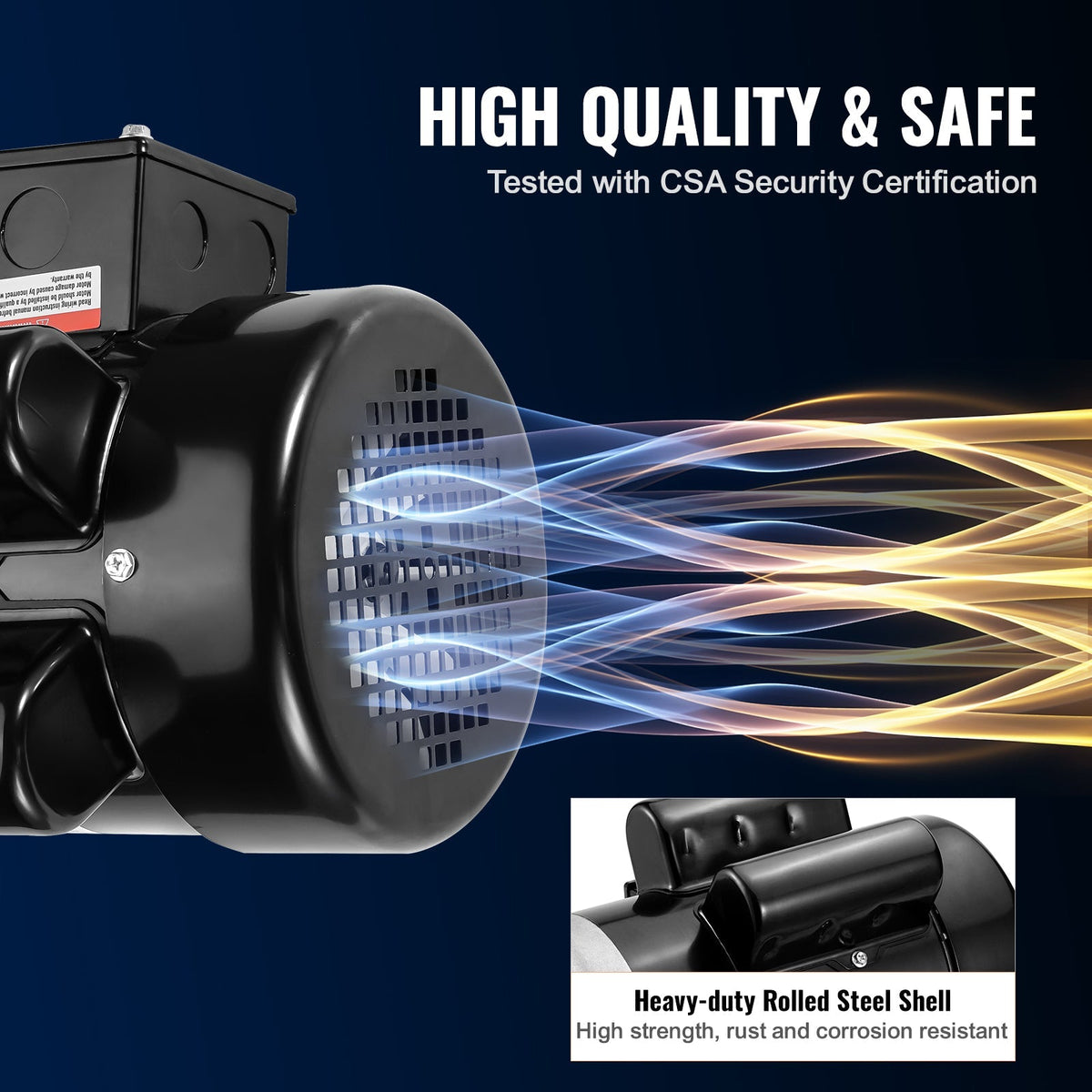

  • Heavy-Duty Steel Frame: Rolled steel shell resists rust and corrosion for long-lasting durability.

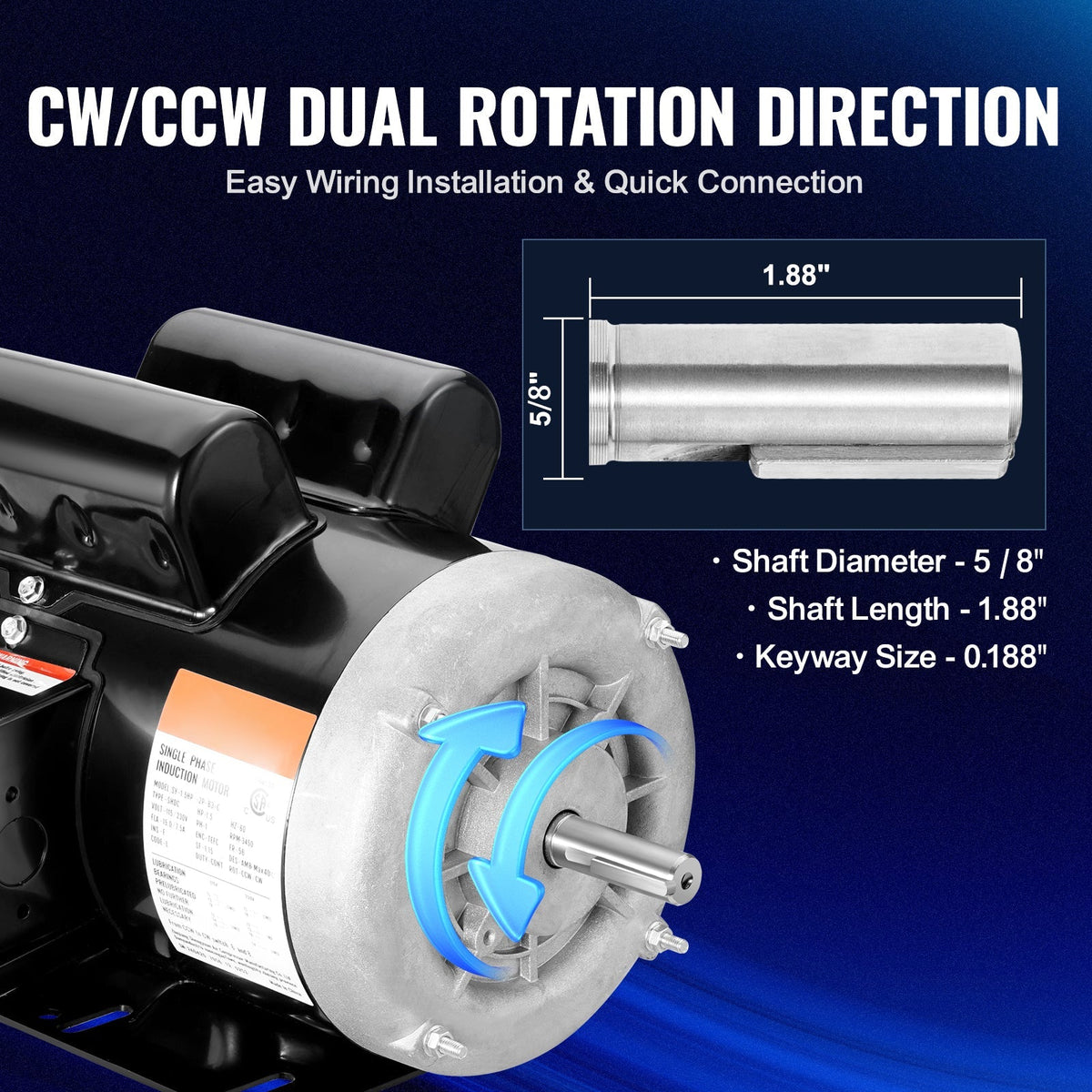

  • Reversible Rotation: Flexible wiring allows both clockwise and counterclockwise operation to suit your equipment’s needs.
  • Standard 56 Frame: Widely compatible for straightforward installations or replacements across a range of machinery.
  • Keyed Shaft: 5/8" diameter keyed shaft (1.88" long, 0.188" keyway) ensures a secure mechanical connection.
  • Tested to CSA Standards: Meets strict quality and safety requirements for peace of mind.
  • Universal Voltage: Operates on both 115V and 230V for installation flexibility.

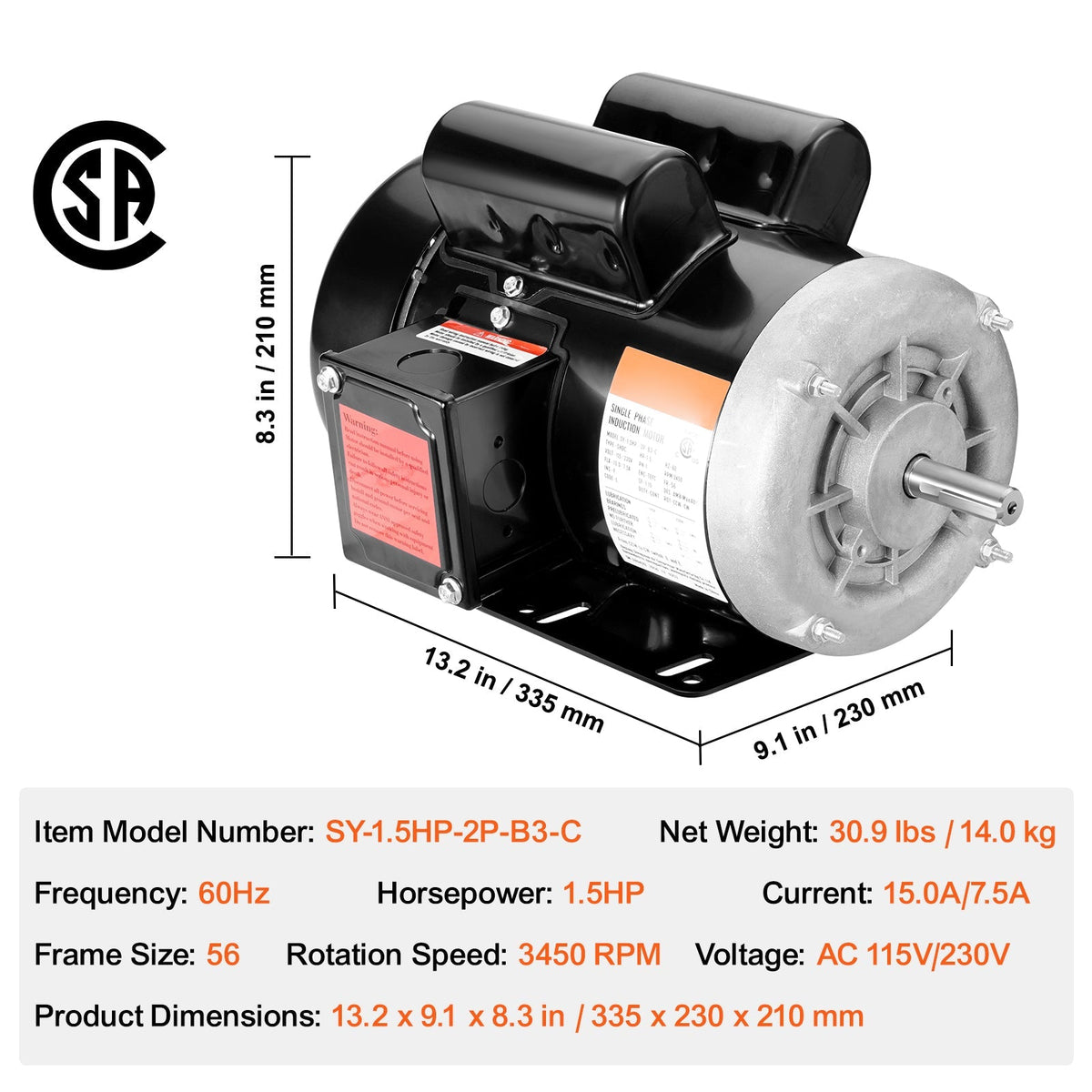

Specifications

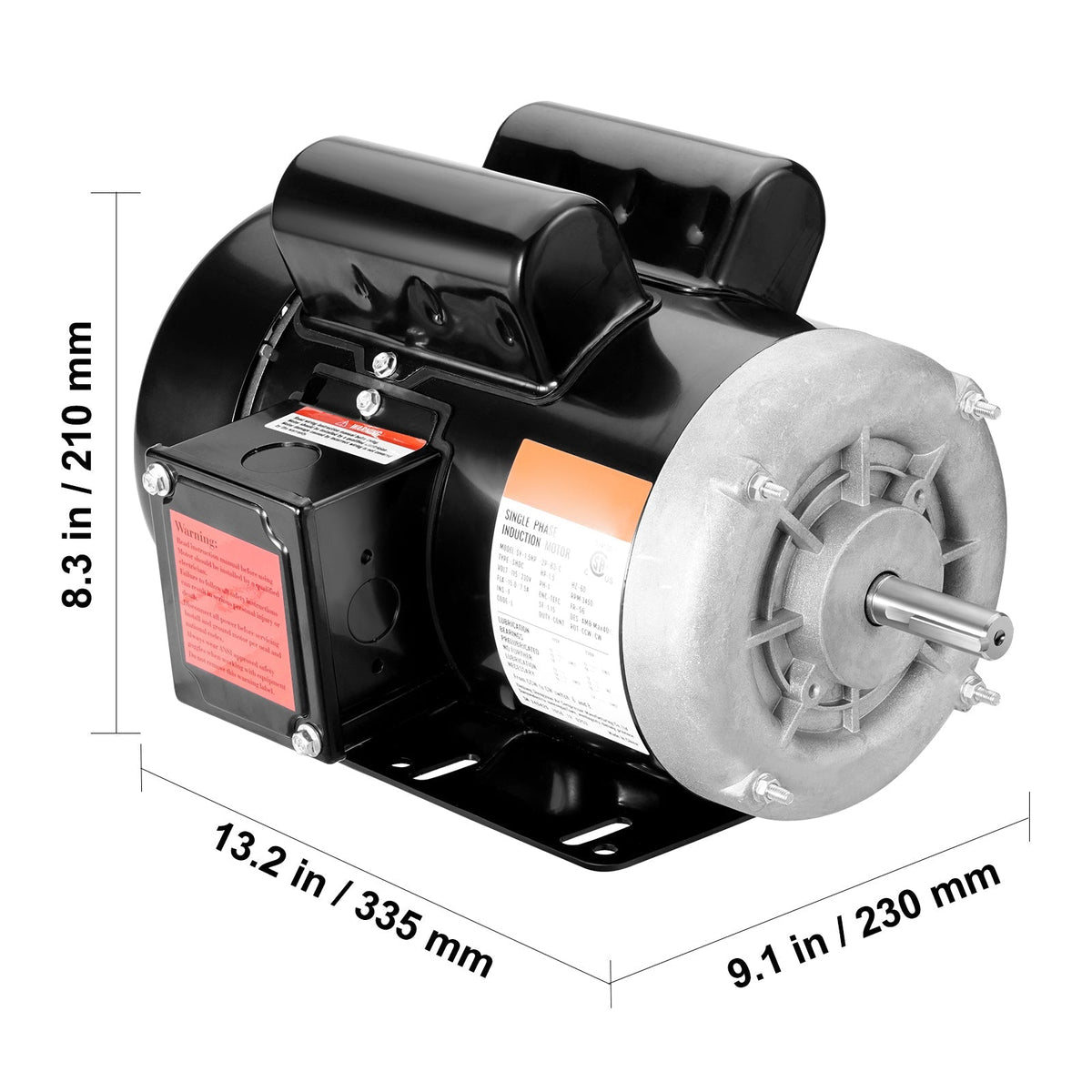

Dimensions 11.02" W x 16.14" D x 12.2" H
Weight 32.39 lb
Material Rolled Steel
Color/Finish Black
Horsepower 1.5 HP
Phase Single
Voltage 115V / 230V AC
Frame 56
RPM 3450
Rotation Reversible (CW/CCW)
Shaft Size 5/8" diameter, 1.88" length, 0.188" keyway

What's Included

  • 1.5HP electric motor

Assembly & Care

Professional installation is recommended. Refer to the included assembly instructions for correct wiring and mounting.
